Dynamic and Static Test benches Dinamici & Statici

Test bench for pumps with closed circuit and open circuit

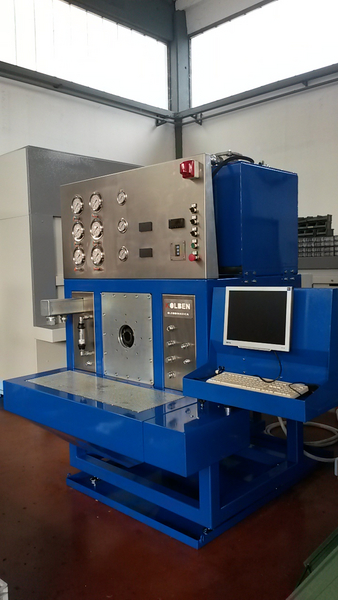

The test bench DOSS-07 is specifically designed to test any closed circuit pump and any open circuit pump.

The ultimate aim is to ensure through testing, and for testing the performance and functional character of any pump.

Technical features  test bench DOSS-07:

  • Power 54 KW
  • Possible load test from 0 to 250 l / min
  • Pressure from 0 to 350 bar continuous (with peak values ​​of up to 420 Bar)

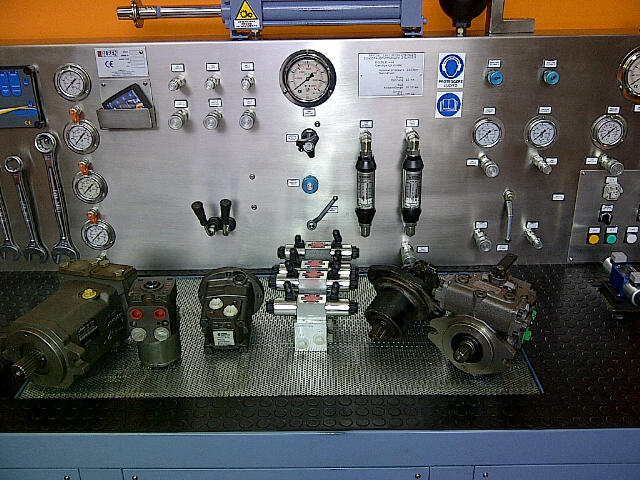

15KW Test Bench

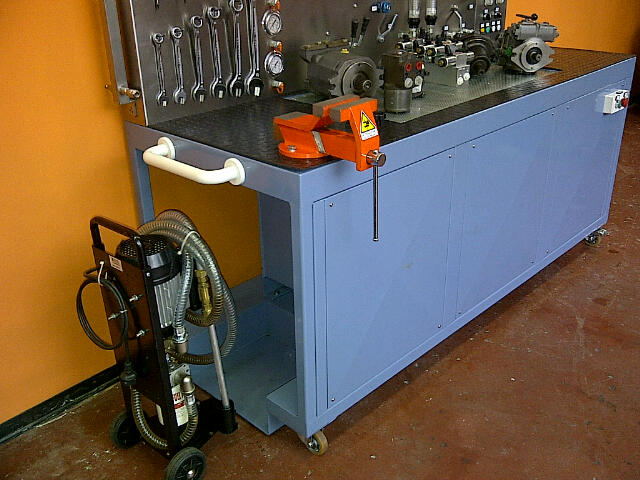

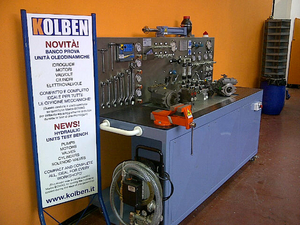

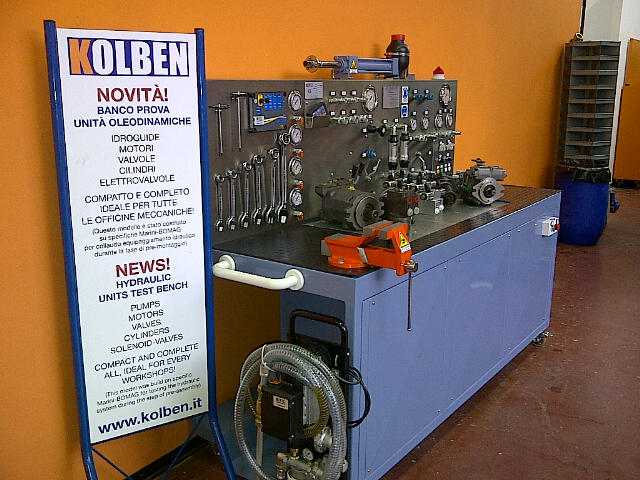

TOTAL PLUS 011 test bench has been manufactured to test any hydraulic component, as valves, solenoid valves, cylinders, power steering, control units (hydraulic, electro-hydraulic, manual controlled)

The purpose is to ensure the component working, verifying if it complies with the requirements of the manufacturer.

Technical data Total Plus test bench:

  • Power 15KW (30KW on request)
  • Oil capacity from 0 to 50 lt/min (80 lt/min on request)
  • Pressure from 0 to 250 Bar (350 Bar on request)

Test bench for proportional valves tests

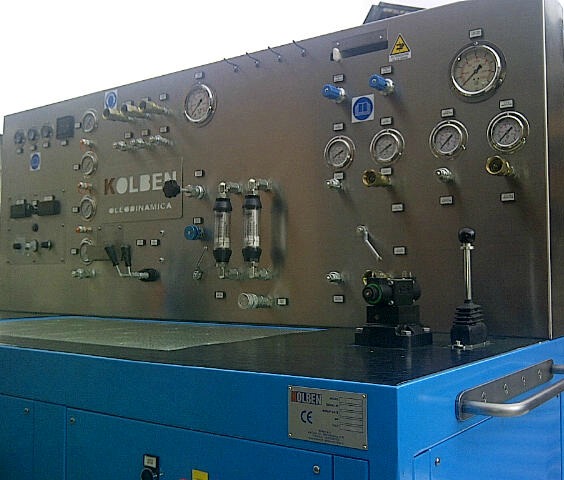

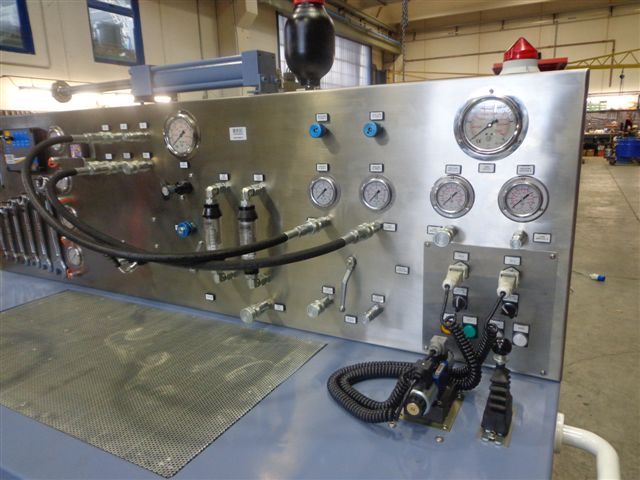

TOTAL PLUS 012 test bench has been specially produced to test any hydraulic component, as: frequency proportional valves for New Holland, electro-valves, cylinders, power steering, distributors, motors.

The purpose is to ensure the component working, verifying it complies with the requirements of the manufacturer.

Technical Data Total Plus 012:

  • Power 15 KW
  • Oil capacity from 0 to 45 lt/min (80 lt/min on request)
  • Pressure from 0 to 250 Bar (350 Bar on request)

Dynamic Test Bench from 120 KW

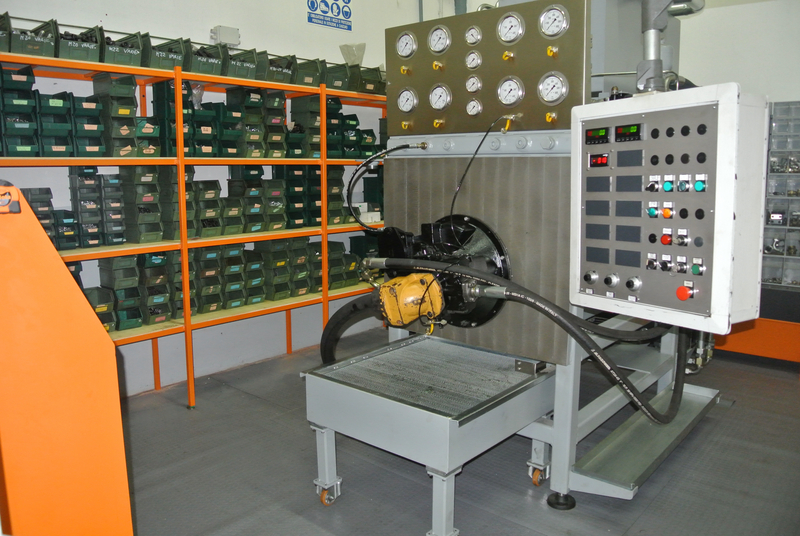

DOSS-01 is a dynamic test bench specially manfactured to test any Pump or Motor.

The purpose is to ensure the component working, verifying it complies with the requirements of the manufacturer.

Technical Data DOSS-01:



  • Power 120KW
  • Oil capacity from 0 to 350 lt/min (500lt/min on request)
  • Pressure from 0 to 420 Bar (500 Bar on request)

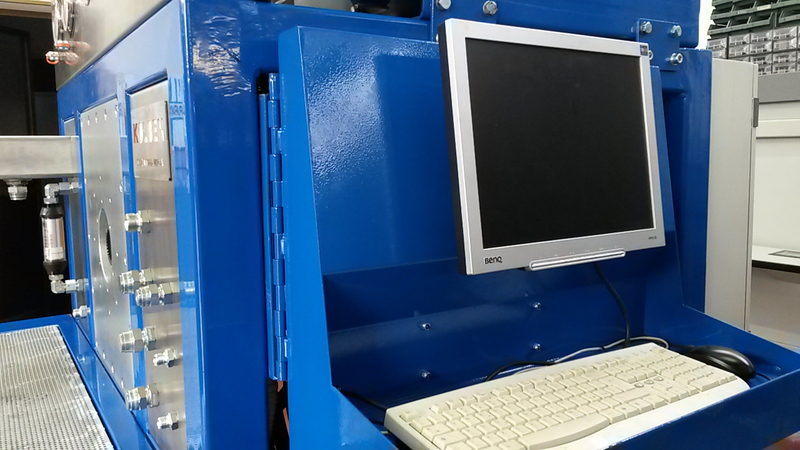

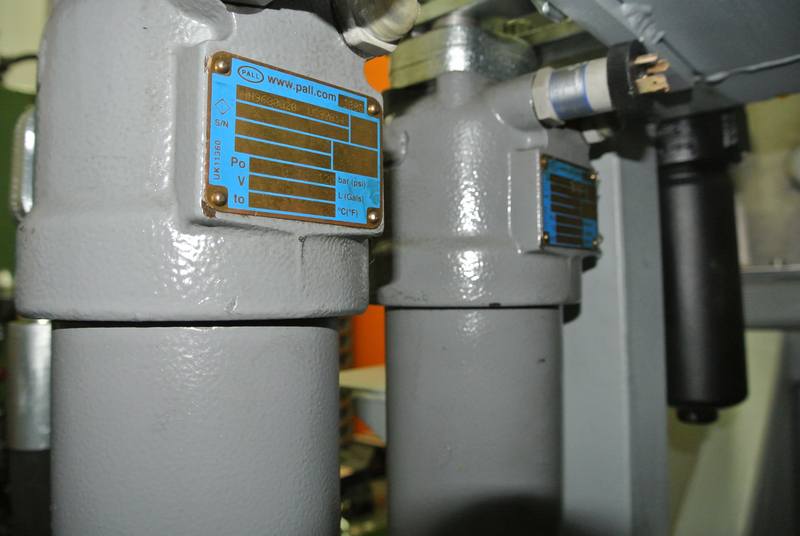

This test bench can be customized on request (possibility to fit direct off-line circuit for oil decontamination through PALL filters). This test bench is ready for the data tracking, through PARKER instruments, with the possibility of customized software for data acquisition.
